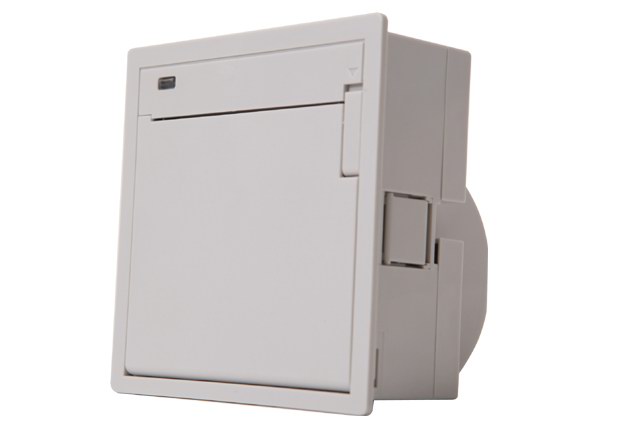

Main features:
◇Completely closed structure
◇easy paper loading structure
◇shape: Rectangle, plane plate
◇Big paper storehouse design: Can accommodate 50mm diameter large roll paper, embedded depth is 52mm
◇appearance: fashion, delicacy, small volume, light weight
◇high printing speed , and print clearly and smoothly
◇Can be easily integrated into customer system equipment
|
Printing performance |
printing method |
thermal printing |
|
Printing speed |
65mm/s（MAX） |
|
|
Effective print width |
48mm |
|
|
Resolution ration |
8dots per millimeter, 384 dots per line |
|
|
Paper feed step |
0.125mm |
|
|
Foreign language characters |
1.support standard ASCII characters (96): 5×7， 2.Support extended ASCII characters (352): 6×8， 3.support standard ASCII characters (224): 12×24 4. support the User-defined character: 6×8 (user option: ASCII characters of 12x24,8X16,8X12) |
|
|
Chinese characters |
Equip with the GBK character library of 24×24 (more than 21000 Chinese characters，and supports the rare Chinese characters printing) |
|
|
Detection function |
lack of paper detection |
yes |
|
Voltage detection |
yes |
|
|
Interface parameters |
Wired Interface |
standard parallel interface: 26 wire double row needle |
|
Standard serial interface: 5 wire single row needle |
||
|
485 interface: 5 wire single row needle |
||
|
Wireless interface |
User option :Bluetooth interface |
|
|
control system |
buffer |
2K |
|
instruction system |
print command: ESC/P (Compatible with IBM/EPSON and ESC/P) |
|
|
Print drivers |
WIN2000/NT/XP/WIN7 |
|
|
power supply |
operating voltage |
DC3.5V～9V) 3A |
|
Operating current |
average ：1 A ~ 1.5 A,；MAX ：2.5A （according to customer requirements, We can adjust the power consumption） |
|
|
reliability |
print head life |
50km |
|
Printing paper |
Paper type |
Ordinary thermal Paper (width: 58±0.5mm，ø≤50mm) |
|
paper loading way |
loading paper from the front、easy paper loading |
|
|
Cut type |
tearing paper manually |
|
|
Physical characteristics |
Operating environment |
Temperature:-10～55℃ Humidity: 10～80%(RH) |
|
Storage temperature / humidity |
Temperature: -20～60℃ Humidity: 10～90%(RH) |
|
|
bare machine weight |
approximately 146g（don’t Contain printing paper） |
|
|
Installation dimension (mm) |
79×79×52 (WⅹHⅹD) |
|
|
outline dimension (mm) |
85×85×54 (WⅹHⅹD) |
