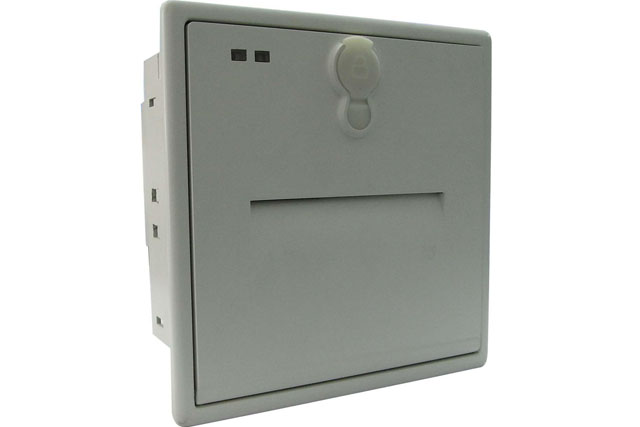

Characteristics
◇Equip with imported original printer core, high printing speed , and print clearly (203 dpi)
◇Loading paper from the front
◇original cutting knife: long life
◇plane plate, Big paper storehouse with a lock
◇Waterproof and low temperature resistance design
| Printing Performance | Model No. | RD-FH5C7 | RD-FH8C7 | ||
| Printing method | Thermal line printing | ||||
| Printing speed | 200mm/s（MAX） |
170mm/s（MAX） i203dpi（8dot/mm)，576dot |
|||
| Resolution | 203dpi（8dot/mm)，432dot/line | 203dpi（8dot/mm)，576dot/line | |||
| Effective printing width | 54mm | 72mm | |||
| Feeding step | 0.125mm | ||||
| Western Character | ANK、ASCII 12x24,8X16,8X12、International Character (12x24) | ||||
| Chinese Character | GB18030: 24×24,Support rare Chinese character printing | ||||
| Barcode | One-Dimensional UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、CODE93、CODE128、Two-Dimensional QRCODE、PDF417,Etc. | ||||
| Graphic printing | Support | ||||
| Curve printing | Support | ||||
| Auto Tabular | Support | ||||
| Bitmap download | Support | ||||
| Cutter Performance | Seperated cutter | Auto paper cutting:half/full cutting | |||
| Dectection method | Abnormal Detection | Out of paper detection | |||
| Black mark location | Selectable | ||||
| Interface | Serial | XH2.54-5P（Norm.RS232 or TTL） | |||
| Parallel | DC3-26 | ||||
| USB | USB-A | ||||
| Control system | Buffer | 2K /64K | |||
| Command System | ESC/POSPrinting Command，Compatible With IBM/EPSON ESC/P. | ||||
| Driver | WIN2000/NT/XP/ WIN7 | ||||
| Power | Way of supply | DC24V/2A | DC24V/3A | ||
| Reliability | Printing Head life | 100km | |||
| Printing paper | Paper type | Normal Thermal Paper，Width 57±0.5mm，Dia≤Ф30mm/thicness 0.06mm～0.07mm | Normal Thermal Paper，Width80±0.5mm，Dia≤Ф50mm/thicness 0.06mm～0.07mm | ||
| Loading Method | Easy paper loading | ||||
| Cutting Method | Auto paper cutting | ||||
| Physical Property | Working Temp. Humidity | –20～50℃/10～80%RH | |||
| Storage Temp. Humidity | –20～60℃/10～90%RH | ||||
| Weight | About 478g | ||||
| Embedded size | 128mm×127mm | ||||
| Outlook size | 136mmL×137mmW×66mmD | ||||
Applied Area: Lottery machine,ATM machine, Advertising Machine, Game Machine, Coupons, Queue Machine, Deposit Cabinet, etc
which need high frequency printing and Unattended Terminal POS machine.
