RD-V2
Series Portable Printer Is A Specially Designed Thermal Micro Printer For
Mobile Receipts. With Built-In Rechargeable Lithium Battery, The Printer Can
Load 40mm Diameter Paper Roll, It Is With Character Of Compact Size, Long
Stand-by Time, Fast Printing Speed, Clear, etc.
|
Print Functions |
Print Type |
Thermal Line Printing |
|
Print Speed |
60mm/Sec（Full Power Charging） |
|
|
Resolution |
203dpi（8Dot/mm)，384dot/Line |
|
|
Effective Print Width |
48mm |
|
|
Paper Feeding Space |
0.125mm |
|
|
Western Character |
ANK、ASCII 12x24,8X16,8X12、International Character(12x24) |
|
|
Chinese Character |
Standard 24×24Dot Matrix GB18030Character Set |
|
|
Barcode Print |
1D UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、 CODABAR、CODE93、CODE128、2D QRCODE、PDF417,Etc Various Barcode Printing。 |
|
|
Graphic Print |
Support |
|
|
Curve Print |
Support |
|
|
Dynamical Table |
Support |
|
|
Bitmap Download |
Support |
|
|
Testing Functions |
Anomaly Detection |
Out Of Paper Detection、Power Insufficient Detection、Overheating Protection By Buzz Warning. |
|
Black Line Location |
Selectable |
|
|
Auto Sleep |
Yes |
|
|
Interface |
Wired Interface |
Serial Interface:5PIN MiNi USB（Standard RS232 Or TTL）， |
|
485Interface: 5PIN MiNi
USB |
||
|
Wireless Interface |
Bluetooth Interface |
|
|
Control System |
Buffer |
2K/64K |
|
Command System |
ESC/POS，Compatible To IBM/EPSON ESC/P |
|
|
Print Driver |
WIN2000/NT/XP/WIN7 |
|
|
Power Supply Parma |
Way Of Supply |
2000mAh、7.4V Rechargeable Lithium Battery，By 12.5%Print Density， 100m～200m Can be Printed Consecutively With Full Charging |
|
Way Of Charging |
Stand by Charging，Charging Time：About 3 Hours，Stand by Time≧24Hour。 |
|
|
Reliability |
Print head Life |
50km |
|
Paper |
Paper Type |
Common Thermal Paper，Width 58±0.5mm/OD≤Ф40mm/Thickness 0.06mm～0.07mm。 |
|
Loading |
Clamshell、Easy Paper Loading。 |
|
|
Paper Cutting |
Manual Tearing |
|
|
Physical Property |
Operating Temperature Range/Humidity |
0～50℃/10～80%RH |
|
Storage Temperature Range / Humidity |
–20～60℃/10～90%RH |
|
|
Weight(Not Including Paper) |
240g(Include Battery) |
|
|

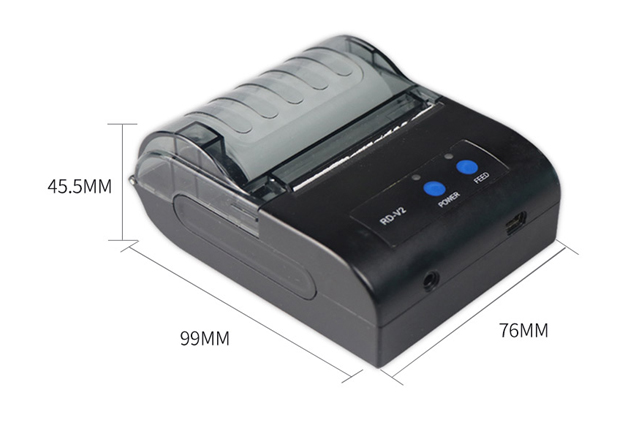

Outlook Size |
99mm Length×76mmWidth×45.5mmHeight |
