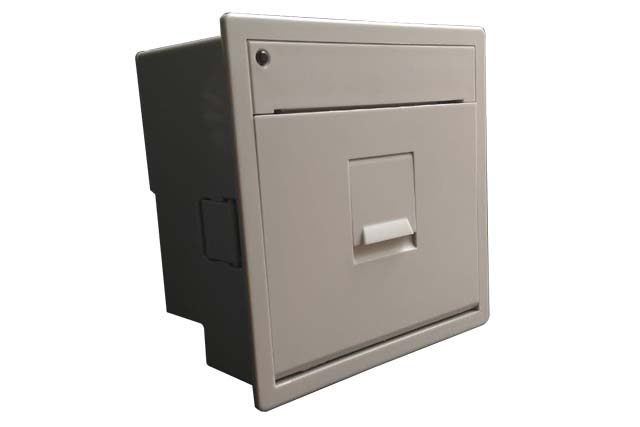

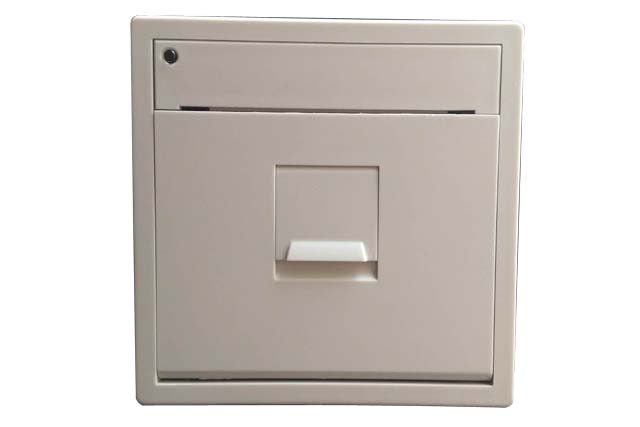

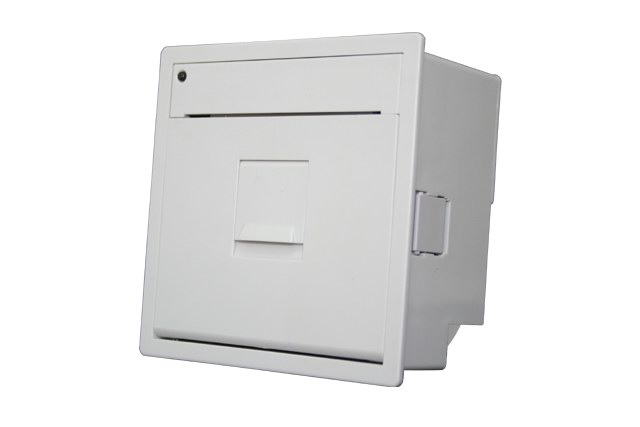

RD-TB3

Chapter 1: characteristics

Support thermal roll paper/ adhesive paper

◇Meet the different needs for the medium width range of 16mm-82mm

◇Print head pressure is adjustable

Have the automatic calibration function for paper

◇Printer themselves can adapt to the environment temperature control

◇modular design, meet different application requirements

Hotline:4000-850-880

Product specification

printing method

thermal line printing

Resolution ration

203DPI

print width

16-82mm

Printing speed

127mm/s (MAX)

buffer

DRAM: 4M FLASH: 4M

The print head temperature detection

inches switch

Detector for paper

Photoelectric sensors

communication interface

USB interface/ parallel interface / serial interface / Network port

bar code / characters / graphics

Bar code: CODE128EAN128ITFCODE39CODE93EAN13

EAN13+2EAN13+5EAN8EAN8+2EAN8+5

CODABARPOSTNETUPC-AUPCA+2UPCA+5

UPC-EUPCE+2UPC-E+5CPOSTMSIMSIC

PLESSEYITF14EAN14QRCODEPDF417

Characters set:    Common single-byte fontsFONT 0--FONT 8

Monochrome PCX, BMP and other image files can be downloaded to FLASH, DRAM

Paper type

thermal roll paper/ adhesive paper etc.

medium width

16mm82mm

Roll paper external diameter

       100mm (MAX)

Roll paper internal diameter

25mm (MIN)

Paper out

Tear

buffer

128K/ NV Flash 256k bytes

Operating system

Support Linux/Windows 7 System Driver and a variety of international languages!

power supply

24VDC, 2.5A

weight

About 1.35kg

outline dimension (mm)

       212.5(D) x 145(W) x 145(H)mm

Operating

environment

       545, 2080%RHno condensation

Storage environment

4055≤93%RH40






Related accessories

Data download

Application area

Fire fighting
Electric
Power,Weighing apparatus
Financial system
Gas station
GPS
Medical
