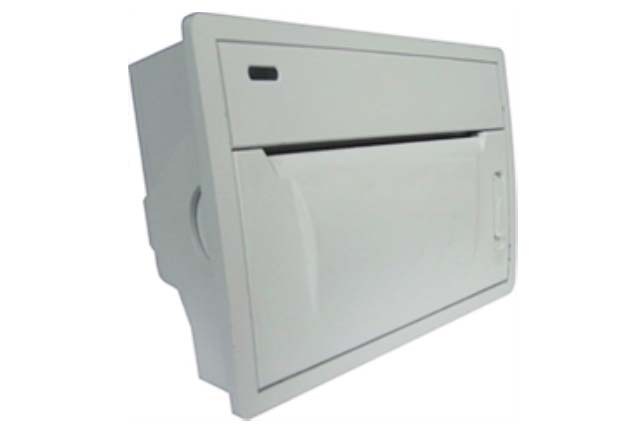

Chapter 1: characteristics
1.Equip with original
printer core, high printing speed , and print clearly
2.Low noise
3.Have the black label location, lack of paper detection,
and overheating detection, etc
4.effective print width:
104mm, printing paper width: 112mm
|
Printing performance |
printing method |
thermal printing |
|
Printing speed |
50mm/s |
|
|
Resolution ration |
203dpi (8dots per millimeter) ,832 dots per line |
|
|
Effective print width |
104mm |
|
|
Characters per line |
69 Characters per line (12×24dot) |
|
|
characters |
ANK character set: 12×24dot, 1.50mm (width) X 3.00mm (height) |
|
|
Chinese characters |
GBK font: 12×24dot, 3.00mm (width) X 3.00mm (height) |
|
|
graphics |
Support different density point figure and bitmap download |
|
|
bar code |
Support bar code (such as: UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、CODE93、CODE128 etc.) printing |
|
|
Detection function |
Anomaly detection |
lack of paper detection: yes overheating detection: yes |
|
Black label location |
yes |
|
|
Interface parameters |
out Interface |
Standard serial interface: 5 wire double row needle (RS232&TTL) standard parallel interface: 26 wire double row needle |
|
control system |
buffer |
16K |
|
instruction system |
print command: ESC/POS (Compatible with IBM/EPSON and ESC/P) |
|
|
Print drivers |
WIN2000/NT/XP/WIN7 |
|
|
power supply |
DC power supply |
DC8.5V/5A |
|
reliability |
print head life |
50km |
|
Printing paper |
Paper type |
Ordinary thermal Paper (width: 112±0.5mm，ø≤50mm) |
|
Physical characteristics |
Operating environment |
Temperature: -0～55℃ Humidity: 10～80%(RH) |
|
Storage temperature / humidity |
Temperature: -20～60℃ Humidity: 10～90%(RH) |
|
|
bare machine weight |
approximately 440g (excluding printing paper） |
|
|
Installation dimension (mm) |
Length 149mm× width 103.5 mm× depth56mm |
|
|
outline dimension (mm) |
Length 157mm×width 112 mm×depth 65mm |
