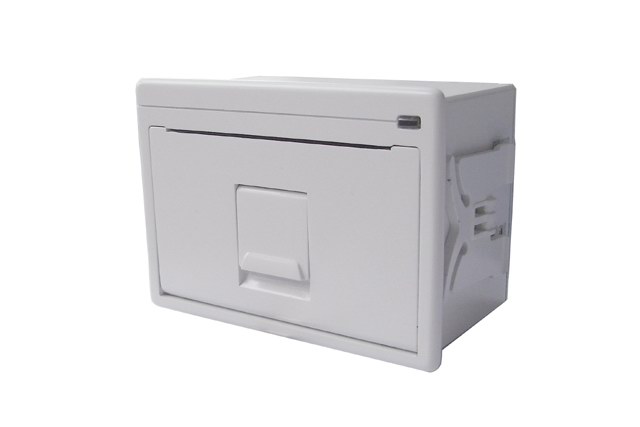

RD-EH

Main features:

◇Completely closed structure
◇easy paper loading
◇shape: Rectangle, plane plate
◇embedded depth is 37.4mm
◇appearance: fashion, delicacy, small volume, light weight
◇high printing speed , and print clearly and smoothly
◇Can be easily integrated into customer system equipment
◇Equip with imported original printer core, low voltage, low power consumption design
◇Data Interface and Power Interface Share The Same Port

Hotline:010-62105070

Product specification

Model

RD-EH32-8+\SN\485

RD-EH32-V2

printing method

thermal printing

Printing speed

50mm/s(MAX)

65mm/s(MAX)

Effective print width

48mm

Resolution ration

8dots per millimeter, 384 dots per line

Paper feed step

0.125mm



Foreign language    characters

1.support standard ASCII characters (96): 5×7,

2.Support extended ASCII characters (352): 6×8,

3.support standard ASCII characters (224): 12×24,

4.support the User-defined character: 6×8

5.user option: ASCII characters of 12x24&8X16&8X12

Chinese characters

Equip with the GB2313 Chinese

Character library of 24×24 (user

option: 16×16 or12×12)

Equip with the GBK font of 24×24, which contains a total of about 20000 Chinese characters,and supports the rare Chinese characters printing

lack of paper detection

yes

Auto

 sleep function

No

Yes

Voltage detection

No

Yes



Wired Interface

standard parallel interface: 20 wire

double row needle





Standard serial interface: 10 wire

double row needle (RS232&TTL)

Standard serial interface: 5 core white base



485 interface: 10 wire double row

needle





buffer

32K

8K

instruction system

print command: ESC/P (Compatible with IBM/EPSON and ESC/P)

Print drivers

WIN2000/NT/XP/WIN7

operating voltage

DC5V±5%,3A (can select

DC5V~9V)

DC3.5V~9V,3A



Operating current

average :1 A ~ 1.5 A,;MAX :2A~3A (according to customer requirements, We can adjust the power consumption)

print head life

50km

Paper type

Ordinary thermal Paper (width: 58±0.5mm,ø30mm)

paper

loading way

loading paper from the front,easy paper loading

Cut type

tearing paper manually

Operating

environment

Temperature: -10~55

Humidity: 10~80%(RH)

Temperature:-20~55

Humidity: 10~80%RH

Storage temperature / humidity

Temperature: -20~60

Humidity: 10~90%(RH)

bare machine

weight

approximately 150g(Contain printing paper)

Installation dimension (mm)

77×53×42 (W x H x D)

77×53×33  (W x H x D)

outline dimension (mm)

82×58×45  (W x H x D)

82×58×36  (W x H x D)


Related accessories

Data download

Application area

Mobile printing system
Instrument & Testing equipment
Electric
Industrial equipment
Fire fighting
