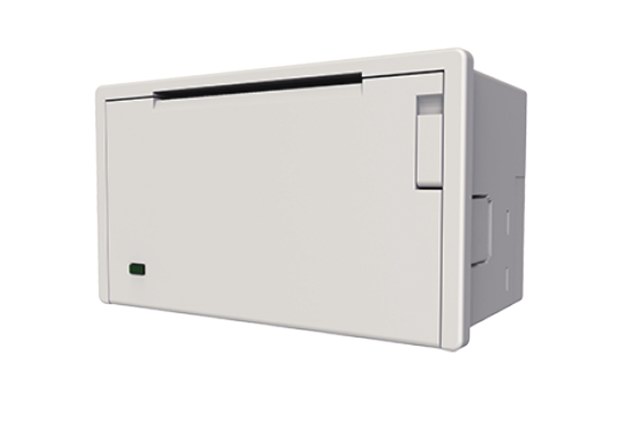

RD-DN


The front paper loading structure and the door are equipped with observation windows. The appearance is stylish, exquisite, small in size and light in weight. The printing speed is high, smooth, clear and can be easily integrated into clients system .
Built-in original imported printer core, low voltage, low power design, widely used in medical, fire, electricity, weighing, banking, gas stations, GPS navigation and other industries.


Hotline:010-62105070

Product specification

  Printing performance

printing method

Pin impact dot matrix printing (4 pins)

Printing speed

RD-D16:  1.2character lines/second;

RD-D24:  0.7 character lines/second;

RD-D40:  0.4 character lines/second(5×7 ASCII character)

Effective print width

RD-D16:  32mm

RD-D24 and RD-D40:   48mm

The number of characters in a line

RD-D16:  16 characters/line

RD-D24:  24 characters/line

RD-D40:  40 characters/line



Print font (ANK)

1.support standard ASCII characters (96): 5×7

2.Support extended ASCII characters (352): 6×8

3. support the User-defined character: 6×8

Print Font (Chinese)

Equip with the GB2312 Chinese character library of 16×16 / 12×12

Detection function

lack of paper detection

No

Interface parameters



Wired Interface

standard parallel interface: 26 wire double row needle socket

Standard serial interface: 5 pin socket (user option: DB-9 hole socket) (RS232 / TTL)

485 interface: 5 pin socket (user option: DB-9 hole socket)

control system

buffer

32K

instruction system

print command: ESC/P (Compatible with IBM/EPSON and ESC/P)

Print drivers

WIN2000/NT/XP standard parallel interface/XP Standard serial interface driving

power supply

operating voltage

DC5V±5%1.5A (can select DC12V36V)

Operating current

average 350ma600ma,MAX 800ma1.5A

reliability

print head life

500,000 lines

Printing paper

Paper type

Ordinary white paper (width: 58±0.5mm, Diameter40mm)

paper

loading way

loading paper from the frontnon-easy paper loading

Cut type

tearing paper manually

Physical characteristics

Operating

environment

Temperature: 055

Humidity: 1080%(RH)

Storage temperature / humidity

Temperature: -2060

Humidity: 1090%(RH)

bare machine

weight

approximately 200gdo not contain printing paper

Installation dimension (mm)

103×57×45 (WHD)




Related accessories

Data download

Application area

Mobile printing system
Instrument & Testing equipment
Electric
Industrial equipment
Fire fighting
